Bracket / I Beam Through Type Cable Fixing Clamps 1 / 2 In Flexible Coaxial Cable

Product Categories

SHENZHEN ZD TECH CO., LTD

Contact Now

Brand Name : zd

Model Number : zd011

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Delivery Time : 3-15 days

Packaging Details : Plastic bag, Carton, Pallet

Certification : Rohs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Supply Ability : 100000 pcs per month

Size : 1/2 in

Cables per clamp : 1

Surface treatment : Passivated

UV Resistance : ≥720 hours

Compatible Diameter maximum : 17mm | 0.67 in

Warranty : 3 years

Contact Now

Feeder Clamp Through Type Feeder Clamp 1/2 in flex feeder clamp

This Fiber Optic Cable Clamp is widely used for :

Product Details

The clamp is designed to support 1 cables with the dimension of 1/2”
It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site
Without additional adapters, provide study, reliable, long-time support
Easy-to-install
Wind loaded
UV and corrosion resistant with SUS304/steel dacro bracket
Capable to working in extreme temperature
Recommend distance of clamps: 0.8~1.0m

Product Specifications

Product Type

Single hole

Size	1/2 in
Compatible Diameter maximum	17mm \| 0.67 in
Compatible Diameter minimum	16 mm \| 0.63 in

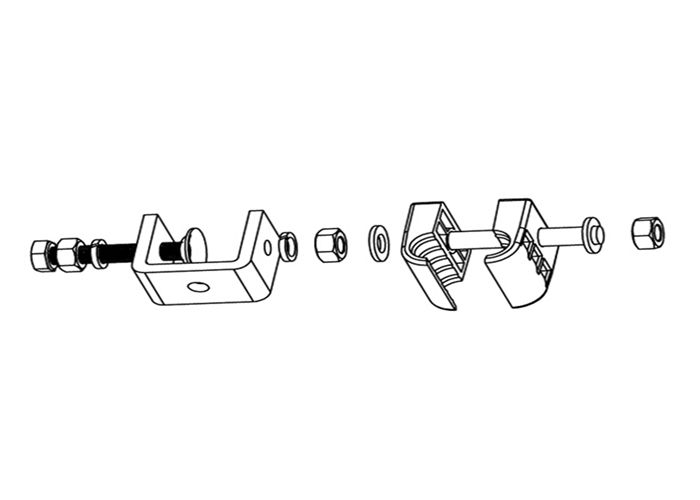

Includes	Angle adapter, plastic clamp, threaded rod, nuts and washer
Material of metal part	Stainless steel 304
Material of plastic part	PP/PA
Cables per clamp	1
Salt spray test	168 h
Surface treatment	Passivated
Warranty	3 years
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance	≥720 hours
OEM	Accepted
Application	Telecom cable installation

Packaging Details	Plastic bag, Carton, Pallet
Delivery Time	3-15 days

Bracket / I Beam Through Type Cable Fixing Clamps 1 / 2 In Flexible Coaxial Cable
