Wind Loaded Feeder Cable Clamp , 7 / 8 In Hanger Two / Four Ways Tower Cable Clamps

Product Categories

SHENZHEN ZD TECH CO., LTD

Contact Now

Brand Name : zd

Model Number : zd009

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 100000 pcs per month

Delivery Time : 3-15 days

Packaging Details : Plastic bag, Carton, Pallet

Certification : Rohs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Size : 7/8 in

Includes : Angle adapter, plastic clamp, threaded rod, nuts and washer

UV Resistance : ≥720 hours

Operating Temperature : -40 °C to +85 °C (-40 °F to +185 °F)

Cables per clamp : 2

Contact Now

Feeder Clamp Through Type Feeder Clamp 7/8 in cable hanger kit

Product Description

Ericsson 2 Core DC Cable Clamps Double Hole Type Triple Stack Stainless Steel

Item No. FBOPFC11-2

Size: For 5mm to 8mm optical fiber cable and 9 to 13mm power cable

Material: Stainless steel 304 , Rubber, PP

Avilable cable ways: two ways, four ways, six ways

Product Details

The clamp is designed to support 2 cables with the dimension of 7/8”
It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site
Without additional adapters, provide study, reliable, long-time support
Each block holds two runs of cable to reduce installation cost
Easy-to-install
Wind loaded
UV and corrosion resistant with SUS304/steel dacro bracket
Capable to working in extreme temperature
Recommend distance of clamps: 0.8~1.0m

Product Specifications

Product Type

Double hole

Size	7/8 in
Compatible Diameter maximum	29 mm \| 1.14 in
Compatible Diameter minimum	27 mm \| 1.06 in

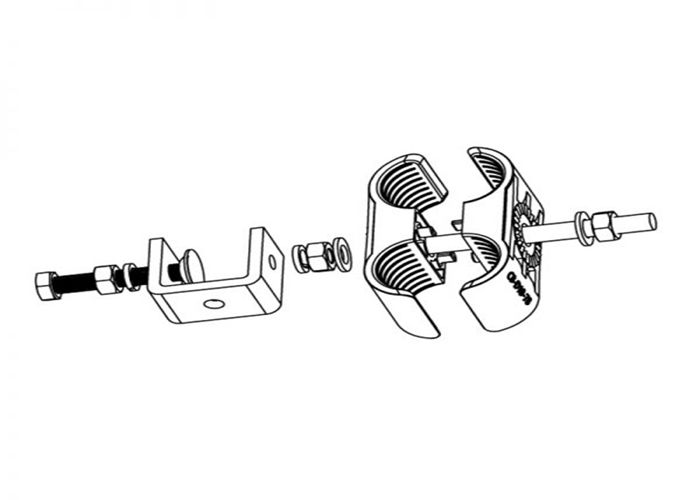

Includes	Angle adapter, plastic clamp, threaded rod, nuts and washer
Material of metal part	Stainless steel 304
Material of plastic part	PP/PA
Cables per clamp	2
Salt spray test	168 h
Surface treatment	Passivated
Warranty	3 years
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance	≥720 hours
OEM	Accepted
Application	Telecom cable installation

Packaging Details	Plastic bag, Carton, Pallet
Delivery Time	3-15 days

Wind Loaded Feeder Cable Clamp , 7 / 8 In Hanger Two / Four Ways Tower Cable Clamps
