698-2700MHz Black Round N Female 4 Way RF Power Divider Splitter

Brand Name : ZD

Model Number : ZD-PSC-727-200-04NF

Certification : RoHS

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Packaging Details : Standard exporting cartons or as customer required

Frequency : 800-2500mhz

type : 2/3/4 way

Insertion Loss : ≤3.2dB

Operating Temp.(℃) : -20~+55

Impedance : 50 Ohm

Connector : N Female

Contact Now

698-2700MHz Black Round N Female 4 Way RF Power Divider Splitter

Product description

RF Cavity Power Divider 698-2700MHz 2 way/ 3way/ 4way High Power Splitter, is a way to input the signal energy is divided into two or more outputs equal or unequal energy devices, in turn, can also be multi-channel signal output energy synthesis all the way, then it can also be called a road device. Should ensure a certain degree of isolation between the splitter output port. The main technical parameters splitters are power loss (including insertion loss, return loss and allocated loss), VSWR for each port, power distribution isolation between ports, power capacity and band width.

Packaging & Delivery

Packaging Details: 50 pieces packed in one Standard Exporting Carton; 30 Cartons packed in one Pallet;
Shipping Marks and Logo can be customized.

Delivery Time: Shipped in 7 days after receiving payment

Key Features

1. Multiple-Band Frequency

2. 200 Watt, 300 Watt and 500 Watt Average Power
3. Minimal RF Insertion Loss
4. High Reliability, IP65 & IP67
5. Low Specified PIM

6. High Reliability
7. Economic price

Electrical Specifications:
Frequency Range	800-2500MHz			800-2700MHz			698-2700MHz
Split Way	2way	3way	4way	2way	3way	4way	2way	3way	4way
VSWR	≤1.25:1			≤1.25:1			≤1.25:1
Insertion Loss(dB)	≤3.3	≤5.2	≤6.3	≤3.3	≤5.2	≤6.4	≤3.3	≤5.2	≤6.5
In-band Ripple(dB)	≤0.3	≤0.4	≤0.5	≤0.3	≤0.4	≤0.5	≤0.3	≤0.4	≤0.5
Average Power(W)	200/300/500			200/300/500			200/300/500
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm			≤-120/-140/-150@2X43dBm			≤-120/-140/-150@2X43dBm
Impedance(Ω)	50			50			50
Connectors Type	N-Female			N-Female			N-Female
Operating Temp.(℃)	-20~+55			-20~+55			-20~+55
Application	For Indoor or Outdoor Use			For Indoor or Outdoor Use			For Indoor or Outdoor Use
Finish	Black Plated			Black Plated			Black Plated

Product Tags:

mobile network amplifier

cell phone signal range extender

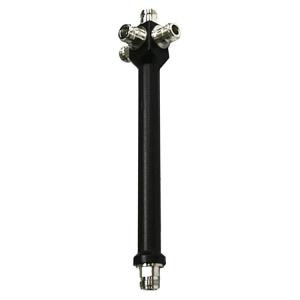

698-2700MHz Black Round N Female 4 Way RF Power Divider Splitter Images
